FIAT E-SCUDO XL

100kW 75kWh Primo Crew Van Auto

FIAT E-SCUDO XL 100kW 75kWh Primo Crew Van Auto

Vehicle Information

Fuel Type Electric
Transmission Automatic
Top Speed 81mph
CO2 0.00g/km
Range (WLTP): 230miles
Real World Estimate: 196miles
Battery Size: 75kWh

Options

Standard Equipment

Technical Data

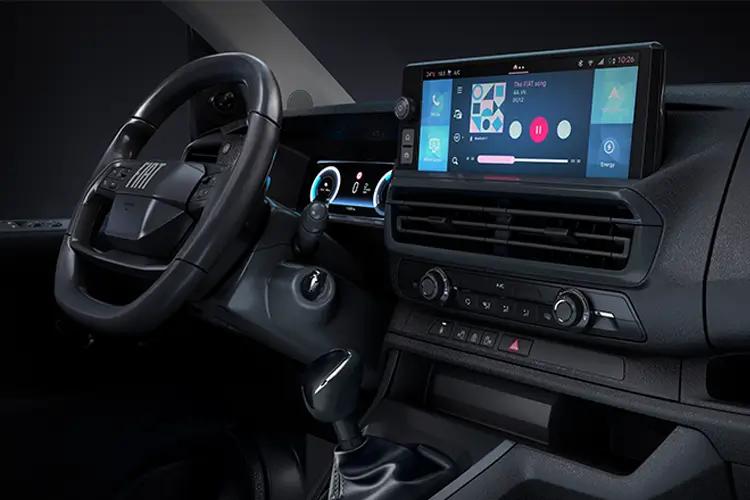

10" digital instrumental cluster
Connectivity via BTA with RCE
Cruise control and speed limiter
Driver attention alert with driver monitoring camera, level - 4
Electronic power steering (EPS)
Intelligent Speed Assist
Lane keeping assist
Multi-function trip computer
Rear parking distance sensor
TPMS (Tyre pressure monitoring system)

Audio controls mounted on steering wheel
Flexible multi-functional short antenna (200mm)
Two speakers and two tweeters

2nd row glazed with dark tinted acoustic fixed left and right side windows
Automatic headlamps on/off control
Automatic two speed intermittent front wipers
Black painted side mouldings
Eco LED headlamps with integrated daytime running lights
Electrically adjustable + heated door mirrors
Front electric windows with one touch facility
High beam assist
High level third brake light
Laminated acoustic windscreen
Offside and nearside sliding side access doors
Painted decor strips
Painted exterior door handle
Painted exterior rear view mirror cover - Black
Painted rear corner bumper with black centre section
Painted sliding door rail cover
Rain sensitive windscreen wipers
Rear fog lights
Twin solid rear doors

12V socket in lower glove box (1 only in cabin)
Air recirculation facility
Chilled glovebox facility
Driver's seat armrest
Ergonomic 6-way adjustable driver's seat with reach, rake, height and lumbar adjustment
Fabric upholstery
Fixed floor mounted load restraint lashing eyes x6
Height and reach adjustable steering wheel
Interior roof trim in row 1 and no grab handle in row 2
Manual air conditioning
Overhead console with 1 ceiling lamp (dome type and 3 lamps)
Removable storage compartment under left and center seats with area for long payload under right seat
Three individual contoured rear seats with adjustable headrest and 2 armrest
TPO plastic floor in 1st row and painted sheet metal in 2nd row
USB socket in cabin (dashboard)

Dynamic surround view with connected navi pack - Scudo

Acoustic vehicle alerting system with audible outside
Automatic unlocking system in case of crash
Door opening warning
Driver and passenger airbags
Height adjustable lap and diagonal inertia reel front seatbelts
Passenger airbag can be deactivated manually
Seatbelt unfastened audible warning and warning light

Dashboard mounted central locking push button and auto locking above 7mph
Immobiliser
Remote control central locking and deadlocking
Remote control ultrasonic security alarm system
Selective door locking

11kW onboard charger bidirectional with 6m mode 3 type2 charging cable
ABS
Advanced emergency braking system (AEBS)
EBA
Electric parking brake
Electronic brake force distribution (EBFD)
ESC
Hill start assist
Regenerative braking system

Mistral black dashboard trim with liquid paladium decor strip in mid-section

Michelin Agilis tyres - 215/60 R17 104H (C class)

Battery Capacity % guaranteed under warranty

70
Battery Capacity in kWh

75
Battery Charging Scenario 1 - Charge Time (Mins)

2205
Battery Charging Scenario 1 - Percentage Change

0-100
Battery Charging Scenario 1 - Power Supply - kW

1.8
Battery Charging Scenario 2 - Charge Time (Mins)

680
Battery Charging Scenario 2 - Percentage Change

0-100
Battery Charging Scenario 2 - Power Supply - kW

7.4
Battery Charging Scenario 3 - Charge Time (Mins)

450
Battery Charging Scenario 3 - Percentage Change

0-100
Battery Charging Scenario 3 - Power Supply - kW

11
Battery Charging Scenario 4 - Charge Time (Mins)

45
Battery Charging Scenario 4 - Percentage Change

5-80
Battery Charging Scenario 4 - Power Supply - kW

100
Battery Leased

No
Battery Type

Lithium-ion
Charging Port Location

Left Side Front
Coupler/Connector Type

CCS Type 2
Maximum Charging Rate - kW

100
Standard manufacturers Battery warranty - Mileage

100000
Standard manufacturers Battery warranty - Years

8
Usable Battery Capacity

69
WLTP - EC (kWh/100km) - Comb - TEH

26.4
WLTP - EC (kWh/100km) - Comb - TEL

22.4
WLTP - EC (miles/kWh) - Comb - TEH

2.4
WLTP - EC (miles/kWh) - Comb - TEL

2.8
WLTP - Pure Electric Range (km) - City - TEH

428
WLTP - Pure Electric Range (km) - City - TEL

505
WLTP - Pure Electric Range (km) - Comb

352
WLTP - Pure Electric Range (km) - Comb - TEH

313
WLTP - Pure Electric Range (km) - Comb - TEL

370
WLTP - Pure Electric Range (miles) - City - TEH

266
WLTP - Pure Electric Range (miles) - City - TEL

314
WLTP - Pure Electric Range (miles) - Comb

219
WLTP - Pure Electric Range (miles) - Comb - TEH

194
WLTP - Pure Electric Range (miles) - Comb - TEL

230

CO

Not Available
CO2

0
HC

Not Available
HC+NOx

Not Available
Noise Level dB(A)

Not Available
NOx

Not Available
Particles

Not Available
Standard Emissions

Not Available

Automatic Transmission

Yes
Bore

Not Available
Catalytic Convertor

Not Available
CC

1
Compression Ratio

Not Available
Cooling System

Not Available
Cylinder Layout

Not Available
Cylinders

Not Available
Engine Codes

Not Available
Engine Layout

Not Available
Engine Make

Not Available
Fuel Delivery

Not Available
Fuel Type

ELECTRIC
Gears

1 SPEED
Manual Transmission

No
Number of Valves

Not Available
Stroke

Not Available
Valve gear

Not Available

EC

Not Available
EC Combined

Not Available
EC Extra Urban

Not Available
EC Urban

Not Available

Alternative Fuel Qualifying

Yes
Alternator Amps

Not Available
Did at least one aspect of this vehicles safety give cause for concern?

No
Badge Power

136
Based On ID

Not Available
Battery AH

Not Available
Battery Volts

Not Available
Chassis Engine Number

Not Available
Clutch

Not Available
Coin Description

Not Available
Coin Gross Vehicle Weight Code

Not Available
Coin Power Output Code

Not Available
Coin Series

Not Available
Coin Wheelbase Description Code

Not Available
Coin Wheelbase Name Code

Not Available
Exhaust System

Not Available
Front Brakes

VENTILATED DISCS
Front Suspension

MACPHERSON STRUTS
Ghost model for valuation purposes

No
Hand Brake

REAR
Insurance Group 1

Not Available
Insurance Group 2

Not Available
Manufacturers Corrosion Perforation Guarantee - Years

8
Manufacturers Paintwork Guarantee - Years

3
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Overall Rating - LCV

4 Star
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

Not Available
Rear Brakes

DISCS
Rear Suspension

TWIN LEAF
Relative Height

H1
Relative Length

L2
Running Cost League Headings

MEDIUM
Service Interval Frequency - Months

24
Service Interval Mileage

25000
Special Edition

No
Special Order

No
Steering

PAS RACK AND PINION
This vehicle is classed as a car for VED purposes

No
Timing Belt Interval Frequency - Months

Not Available
Timing Belt Interval Mileage

Not Available
Vehicle Homologation Class

N1
Vin/Frame No.

Not Available

0 to 62 mph (secs)

13.6
BHP

136
Engine Power KW

100
Engine Power RPM

3540
Engine Torque LBS.FT

199
Engine Torque MKG

27.5
Engine Torque NM

270
Engine Torque RPM

3530
Top Speed

81

Emissions Test Cycle

WLTP
RDE Certification Level

Not Available

Alloys?

No
Automatic Clutch

Yes
Plated 3rd Axle

Not Available
Plated 4th Axle

Not Available
Space Saver?

No
Tyre Make

Michelin
Tyre Size Front

215/60 R17
Tyre Size Rear

215/60 R17
Tyre Size Spare

TYRE REPAIR KIT
Wheel Style

Not Available
Wheel Type

17" STEEL

Front Overhang

901
Height

1935
Length

5331
Load Deck Height

633
Load Height

1397
Load Length

2365
Load Space Width Between Wheel Arches

1258
Load Width

1628
Lower Rear Door Width

1282
Rear Door Height

1220
Rear Overhang

1152
Side Load Door Height

1241
Side Load Door Width

935
Wheelbase

3275
Width (excluding mirrors)

1924
Width (including mirrors)

2204

Boot Capacity Saloons

Not Available
Fuel Tank Capacity (Litres)

Not Available
Gross Train Weight

4100
Gross Vehicle Weight

3160
Load Space Volume

4
Luggage Capacity (Seats Down)

Not Available
Luggage Capacity (Seats Up)

Not Available
Luggage Capacity - 2nd Row Seats Removed

Not Available
Luggage Capacity - 2nd Row Seats Up

Not Available
Luggage Capacity - 3rd Row Seats Down

Not Available
Luggage Capacity - 3rd Row Seats Removed

Not Available
Luggage Capacity - 3rd Row Seats Up

Not Available
Max. Towing Weight - Braked

1000
Max. Towing Weight - Unbraked

750
Minimum Kerbweight

2149
No. of Seats

6
Payload

1011
Plated 2nd Axle

1800
Plated Front Axle

1500
