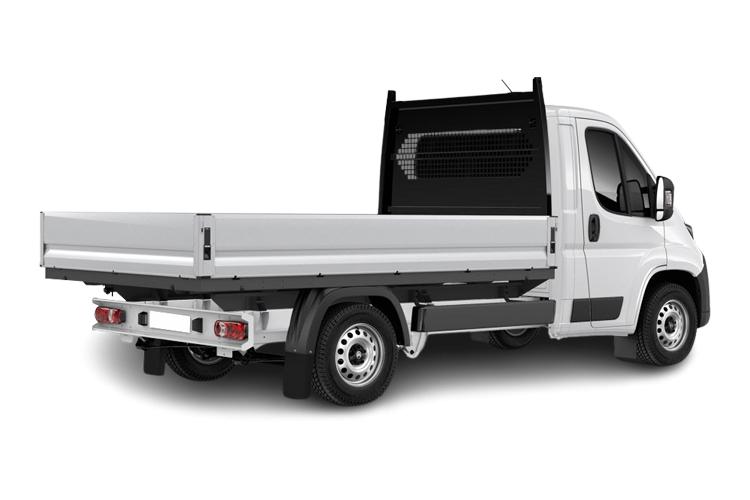

CITROEN RELAY 3.5T L3 DIESEL

2.2 BlueHDi 140 Dropside Enterprise

CITROEN RELAY 3.5T L3 DIESEL 2.2 BlueHDi 140 Dropside Enterprise

Vehicle Information

Fuel Type Diesel
Transmission Manual
Mileage mpg
Top Speed mph
CO2 g/km

Options

Standard Equipment

Technical Data

Advanced emergency braking system - Pedestrian and cyclist
Analogue cluster with central 3.5" digital black and white display
Citroen connect box emergency assist system
Connected services
Cruise control with variable speed limiter
Driver drowsiness detection
Driver monitoring camera (Driver attention alert Level - 4)
Electric power steering
Global telematics box module
Intelligent Speed Assist
Lane keeping assist
Lockable fuel cap
Multi-function on-board trip computer
Traffic sign recognition
Tyre pressure monitor

400mm high and 25mm thick anodised aluminium removable side and rear panels with recessed hinges
Aerodynamic kit - Central spoiler, air guides, active grille shutter
Black door handles
Black door mirrors
Black front and rear bumpers
Black side rubbing strips
Electric front windows
Frame and cross members in powder coated high strength steel
Front windows tinted to 30 percentage opacity
High level third brake light
Integrated cabin protection made from powder coated high-strength steel
Laminated acoustic windscreen
Plywood load floor (12mm thick) with non-slip and scratch resistant resin coating
Rear plastic mudguards
Twin lens door mirrors with electrically adjustable and heated upper mirror
Visible VIN at base of windscreen

12V socket in cabin
6 way driver's seat with lumbar and armrest
8x Load tie-down hooks in load area
Closed upper and open lower glove boxes
Crepe cloth upholstery with single stitches and headrest
Dashboard storage areas
Dual front passenger bench seat
Front door pockets with 1.5L bottle holder
Front seats with height adjustable head restraints
Full steel bulkhead with rear window
Hard plastic floor protection in cabin
Mistral black dashboard
Overhead console with ceiling lamps
Reach adjustable steering wheel
Roof trim in cabin
Two cup holders and mobile phone storage in centre or lower dashboard
Two lateral lashing rings and integrated lashing rings on load floor

Automatic activation of hazard warning lights on major deceleration
Driver and front passenger airbags
Height adjustable 3-point pre-tensioner seatbelts with force limiter

1 Remote (Plip) key and 1 mechanical
Automatic door unlocking in event of AEBS activation
Dashboard mounted central locking push button and auto locking above 12 mph
Deadlocks
Remote central locking
Rolling code transponder immobiliser
Thatcham approved category 1 alarm volumetric and perimeter

ABS
EBA
Electrical interface supply socket
Electrical loom extension 1500mm
Electronic brake force distribution (EBFD)
Electronic Stability Control (ESC)
Hill start assist

15" Steel wheel with black centre cap

HC

Not Available
Standard Emissions

EURO 6
WLTP - CO2 (g/km) - Comb - TEH

306
WLTP - CO2 (g/km) - Comb - TEL

169

Automatic Transmission

No
Bore

83.8
Catalytic Convertor

Yes
CC

2184
Cooling System

WATER
Cylinder Layout

IN-LINE
Cylinders

4
Engine Layout

FRONT TRANSVERSE
Engine Make

Not Available
Fuel Delivery

COMMON RAIL
Fuel Type

DIESEL
Gears

6 SPEED
Manual Transmission

Yes
Number of Valves

16
Stroke

99
Valve gear

DOHC

EC

No
WLTP - FC (l/100km) - Comb - TEH

11.6
WLTP - FC (l/100km) - Comb - TEL

6.4
WLTP - MPG - Comb - TEH

24.4
WLTP - MPG - Comb - TEL

44.1

Alternative Fuel Qualifying

No
Did at least one aspect of this vehicles safety give cause for concern?

No
Badge Engine CC

2.2
Badge Power

140
Based On ID

Not Available
Battery AH

Not Available
Battery Volts

12
Chassis Engine Number

Not Available
Clutch

SINGLE DRY PLATE
Coin Description

Not Available
Coin Gross Vehicle Weight Code

Not Available
Coin Power Output Code

Not Available
Coin Series

Not Available
Coin Wheelbase Description Code

Not Available
Coin Wheelbase Name Code

Not Available
Exhaust System

CATALYTIC CONVERTER
Front Brakes

VENTILATED DISCS
Front Suspension

MACPHERSON STRUTS
Generation Mark

3
Ghost model for valuation purposes

No
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Overall Rating - LCV

5 Star
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

Not Available
Rear Brakes

DISCS
Rear Suspension

LEAF SPRINGS
Relative Height

H1
Relative Length

L3
Running Cost League Headings

LARGE
Service Interval Frequency - Months

24
Service Interval Mileage

16000
Special Edition

No
Special Order

No
Steering

PAS RACK AND PINION
Vehicle Homologation Class

N1
Vin/Frame No.

Not Available

BHP

140
Engine Power KW

103
Engine Power RPM

3500
Engine Torque LBS.FT

258
Engine Torque MKG

35.7
Engine Torque NM

350
Engine Torque RPM

1400

Emissions Test Cycle

WLTP
RDE Certification Level

RDE 2

Alloys?

No
Automatic Clutch

No
Plated 3rd Axle

Not Available
Plated 4th Axle

Not Available
Space Saver?

No
Tyre Make

Not Available
Tyre Size Front

215/70 R15
Tyre Size Rear

215/70 R15
Wheel Style

Not Available
Wheel Type

15" STEEL

Front Overhang

948
Height

2424
Length

6328
Load Deck Height

985
Rear Overhang

1345
Turning Circle - Kerb to Kerb

14.3
Wheelbase

4035
Width (excluding mirrors)

2100

Boot Capacity Saloons

Not Available
Fuel Tank Capacity (Litres)

90
Gross Train Weight

6000
Gross Vehicle Weight

3500
Luggage Capacity (Seats Down)

Not Available
Luggage Capacity (Seats Up)

Not Available
Luggage Capacity - 2nd Row Seats Removed

Not Available
Luggage Capacity - 2nd Row Seats Up

Not Available
Luggage Capacity - 3rd Row Seats Down

Not Available
Luggage Capacity - 3rd Row Seats Removed

Not Available
Luggage Capacity - 3rd Row Seats Up

Not Available
Max. Towing Weight - Braked

2500
Max. Towing Weight - Unbraked

750
Minimum Kerbweight

2025
No. of Seats

3
Payload

1475
Plated 2nd Axle

2000
Plated Front Axle

1880

Personal Price

+ initial rental

Administration Fee: £ inc VAT

Fetching your price

Contract Type More Info

Term More Info

Initial Rental More Info

Annual Mileage More Info

Maintenance More Info

An excess mileage charge will apply if you exceed the contracted mileage. The exact charge will be confirmed on the official quotation prior to your acceptance to proceed.
