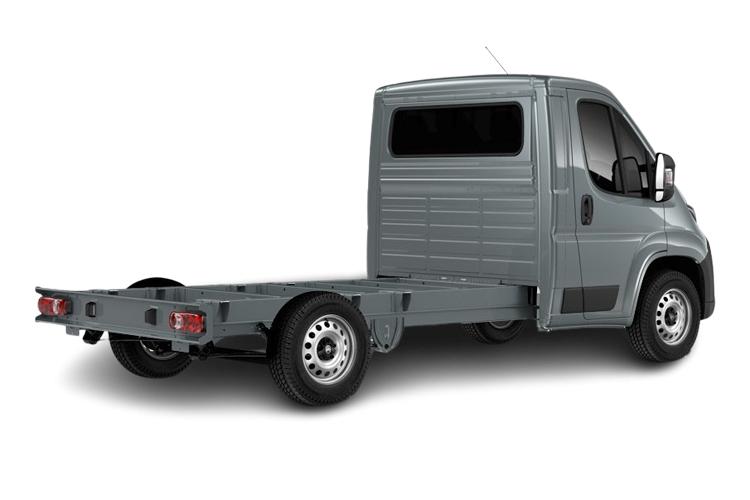

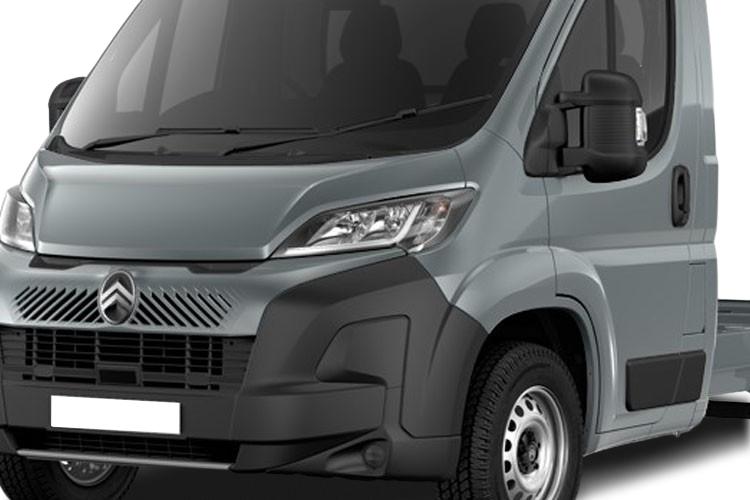

CITROEN RELAY 3.5T L3 DIESEL

2.2 BlueHDi 140 Chassis Cab Enterprise Auto

CITROEN RELAY 3.5T L3 DIESEL 2.2 BlueHDi 140 Chassis Cab Enterprise Auto

Vehicle Information

Fuel Type Diesel
Transmission Automatic
Mileage mpg
Top Speed mph
CO2 g/km

Options

Standard Equipment

Technical Data

Advanced emergency braking system - Pedestrian and cyclist

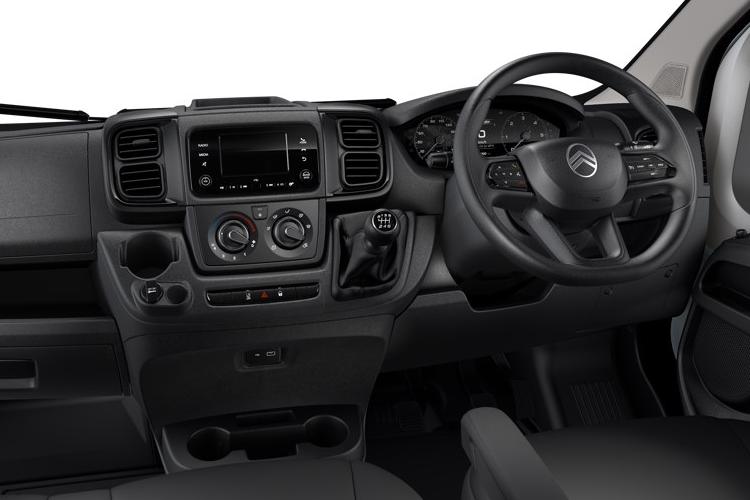

Analogue cluster with central 3.5" digital black and white display
Citroen connect box emergency assist system
Connected services
Cruise control with variable speed limiter
Driver drowsiness detection
Driver monitoring camera (Driver attention alert Level - 4)
Electric power steering
Global telematics box module
Intelligent Speed Assist
Lane keeping assist
Lockable fuel cap
Multi-function on-board trip computer
Traffic sign recognition
Tyre pressure monitor

Aerodynamic kit - Central spoiler, air guides, active grille shutter
Black door handles
Black door mirrors
Black front and rear bumpers
Black side rubbing strips
Electric front windows
Front windows tinted to 30 percentage opacity
High level third brake light
Laminated acoustic windscreen
Twin lens door mirrors with electrically adjustable and heated upper mirror
Visible VIN at base of windscreen

12V socket in cabin
6 way driver's seat with lumbar and armrest
8x Load tie-down hooks in load area
Closed upper and open lower glove boxes
Crepe cloth upholstery with single stitches and headrest
Dashboard storage areas
Dual front passenger bench seat
Front door pockets with 1.5L bottle holder
Front seats with height adjustable head restraints
Full steel bulkhead with rear window
Hard plastic floor protection in cabin
Mistral black dashboard
Overhead console with ceiling lamps
Reach adjustable steering wheel
Roof trim in cabin
Two cup holders and mobile phone storage in centre or lower dashboard

Automatic activation of hazard warning lights on major deceleration
Driver and front passenger airbags
Height adjustable 3-point pre-tensioner seatbelts with force limiter

1 Remote (Plip) key and 1 mechanical
Automatic door unlocking in event of AEBS activation
Dashboard mounted central locking push button and auto locking above 12 mph
Deadlocks
Remote central locking
Rolling code transponder immobiliser
Thatcham approved category 1 alarm volumetric and perimeter

ABS
EBA
Electrical interface supply socket
Electronic brake force distribution (EBFD)
Electronic Stability Control (ESC)
Hill start assist

16" Steel wheel with black centre cap

HC

Not Available
Standard Emissions

EURO 6
WLTP - CO2 (g/km) - Comb - TEH

315
WLTP - CO2 (g/km) - Comb - TEL

184

Automatic Transmission

Yes
Bore

83.8
Catalytic Convertor

Yes
CC

2184
Cooling System

WATER
Cylinder Layout

IN-LINE
Cylinders

4
Engine Layout

FRONT TRANSVERSE
Engine Make

Not Available
Fuel Delivery

COMMON RAIL
Fuel Type

DIESEL
Gears

8 SPEED
Manual Transmission

No
Number of Valves

16
Stroke

99
Valve gear

DOHC

EC

No
WLTP - FC (l/100km) - Comb - TEH

12
WLTP - FC (l/100km) - Comb - TEL

7
WLTP - MPG - Comb - TEH

23.5
WLTP - MPG - Comb - TEL

40.4

Alternative Fuel Qualifying

No
Did at least one aspect of this vehicles safety give cause for concern?

No
Badge Engine CC

2.2
Badge Power

140
Based On ID

Not Available
Battery AH

Not Available
Battery Volts

12
Chassis Engine Number

Not Available
Clutch

SINGLE DRY PLATE
Coin Description

Not Available
Coin Gross Vehicle Weight Code

Not Available
Coin Power Output Code

Not Available
Coin Series

Not Available
Coin Wheelbase Description Code

Not Available
Coin Wheelbase Name Code

Not Available
Exhaust System

CATALYTIC CONVERTER
Front Brakes

VENTILATED DISCS
Front Suspension

MACPHERSON STRUTS
Generation Mark

3
Ghost model for valuation purposes

No
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Overall Rating - LCV

5 Star
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

Not Available
Rear Brakes

DISCS
Rear Suspension

LEAF SPRINGS
Relative Height

H1
Relative Length

L3
Running Cost League Headings

LARGE
Service Interval Frequency - Months

24
Service Interval Mileage

16000
Special Edition

No
Special Order

No
Steering

PAS RACK AND PINION
Vehicle Homologation Class

N1
Vin/Frame No.

Not Available

BHP

140
Engine Power KW

103
Engine Power RPM

3500
Engine Torque LBS.FT

280
Engine Torque MKG

38.7
Engine Torque NM

380
Engine Torque RPM

1400

Emissions Test Cycle

WLTP
RDE Certification Level

RDE 2

Alloys?

No
Automatic Clutch

Yes
Plated 3rd Axle

Not Available
Plated 4th Axle

Not Available
Space Saver?

No
Tyre Make

Not Available
Tyre Size Front

215/75 R16
Tyre Size Rear

215/75 R16
Wheel Style

Not Available
Wheel Type

16" STEEL

Front Overhang

948
Height

2254
Length

5943
Load Deck Height

Not Available
Load Height

Not Available
Load Length

Not Available
Load Space Width Between Wheel Arches

Not Available
Load Width

Not Available
Lower Rear Door Width

Not Available
Rear Door Height

Not Available
Rear Overhang

860
Side Load Door Height

Not Available
Side Load Door Width

Not Available
Turning Circle - Kerb to Kerb

14.3
Wheelbase

4035
Width (excluding mirrors)

2050

Boot Capacity Saloons

Not Available
Fuel Tank Capacity (Litres)

90
Gross Train Weight

6000
Gross Vehicle Weight

3500
Luggage Capacity (Seats Down)

Not Available
Luggage Capacity (Seats Up)

Not Available
Luggage Capacity - 2nd Row Seats Removed

Not Available
Luggage Capacity - 2nd Row Seats Up

Not Available
Luggage Capacity - 3rd Row Seats Down

Not Available
Luggage Capacity - 3rd Row Seats Removed

Not Available
Luggage Capacity - 3rd Row Seats Up

Not Available
Max. Towing Weight - Braked

2500
Max. Towing Weight - Unbraked

750
Minimum Kerbweight

1845
No. of Seats

3
Payload

1655
Plated 2nd Axle

2000
Plated Front Axle

1960
