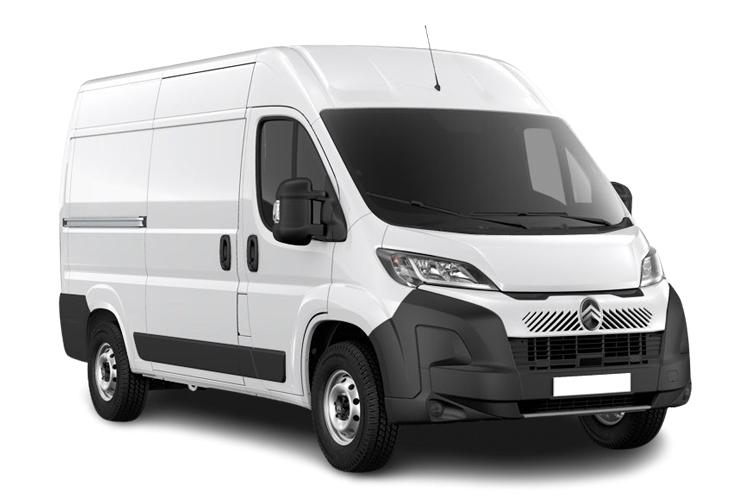

CITROEN e-RELAY 4.25T L4

200kW 110kWh H2 Van Enterprise Auto [22kW]

CITROEN e-RELAY 4.25T L4 200kW 110kWh H2 Van Enterprise Auto [22kW]

Vehicle Information

Fuel Type Electric
Transmission Automatic
Top Speed 56mph
CO2 0.00g/km
Range (WLTP): 262miles
Real World Estimate: 223miles
Battery Size: 110kWh

Options

Standard Equipment

Technical Data

Advanced emergency braking system - Pedestrian and cyclist
Blind Spot Assist (BSA) + Rear Cross path Detection (RCD)
Citroen connect box emergency assist system
Connected services
Driver drowsiness detection
Driver monitoring camera (Driver attention alert Level - 4)
Electric power steering
Global telematics box module
Intelligent Speed Assist
Lane keeping assist
Moving off information system
Multi-function on-board trip computer
Traffic sign recognition
Tyre pressure monitor

Steering wheel mounted controls

Aerodynamic kit - Central spoiler, air guides, active grille shutter
Black door handles
Black door mirrors
Black front and rear bumpers
Black side rubbing strips
Electric front windows
Front windows tinted to 30 percentage opacity
High level third brake light
Laminated acoustic windscreen
Nearside sliding side loading door
Twin lens door mirrors with electrically adjustable and heated upper mirror
Visible VIN at base of windscreen

10x Load tie-down hooks in load area
6 way driver's seat with lumbar and armrest
Automatic air conditioning for cab area with glovebox
Closed upper and open lower glove boxes
Dashboard storage areas
Dual front passenger bench seat
Front door pockets with 1.5L bottle holder
Front seats with height adjustable head restraints
Hard plastic floor protection in cabin
Mistral black dashboard
Overhead console with ceiling lamps
Overhead shelf
Reach adjustable steering wheel
Roof trim in cabin
Two cup holders and mobile phone storage in centre or lower dashboard

Acoustic vehicle alerting system
Automatic activation of hazard warning lights on major deceleration
Driver and front passenger airbags
Height adjustable 3-point pre-tensioner seatbelts with force limiter

1 Remote (Plip) key and 1 mechanical
Automatic door unlocking in event of AEBS activation
Dashboard mounted central locking push button and auto locking above 12 mph
Deadlocks
Remote central locking
Rolling code transponder immobiliser
Thatcham approved category 1 alarm volumetric and perimeter

22kW AC on board charger
ABS
Double leaf rear suspension
EBA
Electric parking brake
Electronic brake force distribution (EBFD)
Electronic Stability Control (ESC)
Hill start assist
Mode 3 charging cable 6 meters for use with wallbox
Speed limiter 56mph

Battery Capacity % guaranteed under warranty

70
Battery Capacity in kWh

110
Battery Charging Scenario 1 - Charge Time (Mins)

1000
Battery Charging Scenario 1 - Percentage Change

0-100
Battery Charging Scenario 1 - Power Supply - kW

7.4
Battery Charging Scenario 2 - Charge Time (Mins)

365
Battery Charging Scenario 2 - Percentage Change

0-100
Battery Charging Scenario 2 - Power Supply - kW

22
Battery Charging Scenario 3 - Charge Time (Mins)

115
Battery Charging Scenario 3 - Percentage Change

5-80
Battery Charging Scenario 3 - Power Supply - kW

50
Battery Charging Scenario 4 - Charge Time (Mins)

55
Battery Charging Scenario 4 - Percentage Change

5-80
Battery Charging Scenario 4 - Power Supply - kW

150
Battery Leased

No
Battery Type

Lithium-ion
Charging Port Location

Left Side Front
Coupler/Connector Type

CCS Type 2
Maximum Charging Rate - kW

150
Standard manufacturers Battery warranty - Mileage

100000
Standard manufacturers Battery warranty - Years

8
Usable Battery Capacity

97.8
WLTP - EC (kWh/100km) - City

22.2
WLTP - EC (kWh/100km) - Comb

26.3
WLTP - EC (kWh/100km) - Comb - TEH

31.1
WLTP - EC (kWh/100km) - Comb - TEL

22.2
WLTP - EC (miles/kWh) - City

2.8
WLTP - EC (miles/kWh) - Comb

2.4
WLTP - EC (miles/kWh) - Comb - TEH

2
WLTP - EC (miles/kWh) - Comb - TEL

2.8
WLTP - Pure Electric Range (km) - City

501
WLTP - Pure Electric Range (km) - Comb

422
WLTP - Pure Electric Range (miles) - City

311
WLTP - Pure Electric Range (miles) - Comb

262

CO

Not Available
CO2

0
HC

Not Available
HC+NOx

Not Available
Noise Level dB(A)

Not Available
NOx

Not Available
Particles

Not Available
Standard Emissions

Not Available

Automatic Transmission

Yes
Bore

Not Available
Catalytic Convertor

Not Available
CC

1
Compression Ratio

Not Available
Cooling System

Not Available
Cylinder Layout

Not Available
Cylinders

Not Available
Engine Codes

Not Available
Engine Layout

Not Available
Engine Make

Not Available
Fuel Delivery

Not Available
Fuel Type

ELECTRIC
Gears

1 SPEED
Manual Transmission

No
Number of Valves

Not Available
Stroke

Not Available
Valve gear

Not Available

EC

Not Available
EC Combined

Not Available
EC Extra Urban

Not Available
EC Urban

Not Available

Did at least one aspect of this vehicles safety give cause for concern?

No
Badge Engine CC
Badge Power

279
Based On ID

Not Available
Battery AH

Not Available
Battery Volts

12
Chassis Engine Number

Not Available
Clutch

SINGLE DRY PLATE
Coin Description

Not Available
Coin Gross Vehicle Weight Code

Not Available
Coin Power Output Code

Not Available
Coin Series

Not Available
Coin Wheelbase Description Code

Not Available
Coin Wheelbase Name Code

Not Available
Exhaust System

CATALYTIC CONVERTER
Front Brakes

VENTILATED DISCS
Front Suspension

MACPHERSON STRUTS
Generation Mark

3
Ghost model for valuation purposes

No
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Overall Rating - LCV

5 Star
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

Not Available
Rear Brakes

DISCS
Rear Suspension

LEAF SPRINGS
Relative Height

H2
Relative Length

L4
Running Cost League Headings

LARGE
Service Interval Frequency - Months

12
Service Interval Mileage

16000
Special Edition

No
Special Order

No
Steering

PAS RACK AND PINION
This vehicle is classed as a car for VED purposes

No
Vehicle Homologation Class

N2
Vin/Frame No.

Not Available

0 to 62 mph (secs)

10
BHP

279
Engine Power KW

205
Engine Torque LBS.FT

302
Engine Torque MKG

41.8
Engine Torque NM

410
Top Speed

56

Emissions Test Cycle

WLTP

Alloys?

No
Automatic Clutch

Yes
Plated 3rd Axle

Not Available
Plated 4th Axle

Not Available
Space Saver?

No
Tyre Make

Not Available
Tyre Size Front

215/75 R16
Tyre Size Rear

215/75 R16
Wheel Style

Not Available
Wheel Type

16" STEEL

Front Overhang

948
Height

2612
Length

6363
Load Deck Height

535
Load Height

1932
Load Length

4070
Load Space Width Between Wheel Arches

1422
Load Width

1870
Lower Rear Door Width

1562
Rear Door Height

1790
Rear Overhang

1380
Side Load Door Height

1755
Side Load Door Width

1250
Turning Circle - Kerb to Kerb

14.3
Wheelbase

4035
Width (excluding mirrors)

2050
Width (including mirrors)

2690

Boot Capacity Saloons

Not Available
Fuel Tank Capacity (Litres)

Not Available
Gross Train Weight

5500
Gross Vehicle Weight

4250
Load Space Volume

15
Luggage Capacity (Seats Down)

Not Available
Luggage Capacity (Seats Up)

Not Available
Luggage Capacity - 2nd Row Seats Removed

Not Available
Luggage Capacity - 2nd Row Seats Up

Not Available
Luggage Capacity - 3rd Row Seats Down

Not Available
Luggage Capacity - 3rd Row Seats Removed

Not Available
Luggage Capacity - 3rd Row Seats Up

Not Available
Max. Towing Weight - Braked

2400
Max. Towing Weight - Unbraked

750
Minimum Kerbweight

2815
No. of Seats

3
Payload

1435
Plated 2nd Axle

2400
Plated Front Axle

2100
